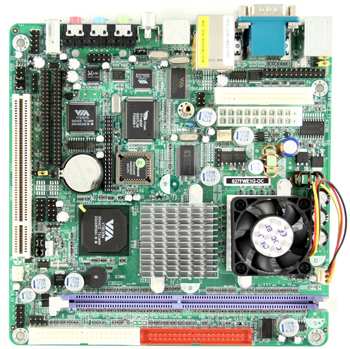

Great Value! The Modular Mini-itx motherboard

This is a high quality replacement board for the M10000 which is compatible with expansion daughterboards. Depending on your desire, this board may be mated with the cardbus-DB, Ethernet-DB, 1 ethernet port board, or the 2x-serial-DB. When mated with the cardbus-DB this board becomes comparable to the MII 10000.

- Processor Support VIA C3 processor in EBGA packaging, for 133MHz Front Side Bus Frequency
- Chipset VIA VT8623 North Bridge
- VIA VT8235 High Bandwidth Vlink Client South Bridge
- Expansion Slot 1xPCI Slot (PCI 2.2)
- System Memory 1 x 184-pin DDR Module Sockets Support Max 1GB, 2.5V DDR266 DDR SDRAM
- Support 8/16/32/64MB frame buffer
- VGA 16/32/64MB frame buffer using system memory
- nternal AGP 8X performance
- 128bit 2D/3D graphics engine
- 24bit true-color RAMDAC up to 250MHZ pixel
- Onboard IDE 2 X UltraDMA 133 IDE Interface (Up to 4 IDE Devices & 133MB/s transfer rate)
- ATAPI IDE CD-ROM, CD-R,CD-RW and LS-120 Support
- Onboard LAN IEEE 802.3 10/100 BASE T Standard
- Boot On LAN function
- Onboard Audio Software Audio Controller with Onboard 6-Channel CODEC Compliant to AC97'
- Support 3D Surround & Positioning, Full Duplex
- TV-OUT VIA VT1622A TV encoder
- Support NTSC/PAL TV system S-Video/AV Output
- PC'99 Colorful I/O Ports 6xUSB 2.0 Ports, 1xParallel Port, 1xVGA Port, 2xSerial Ports(1xheader,1xConn.)
- 1xPS/2 Keyboard Port, 1xPS/2 Mouse Port, 1xFloppy Port
- Line-in/out/MIC Audio Ports
- Special Function ACPI supporting for OS Directed Power Management:
-- MODEM Ring remote wake up
-- RTC Alarm, Keyboard Power On
-- Software power off
-- Power button
- Meets PC 99 Requirements
- PC Health Monitor CPU temperature, System temperature, System voltage (Vcore,Vtt,Vcc3,5V,12V...), FAN speed
- Form Factor 17 cm x 17 cm
- 6 layer boar

139.95
