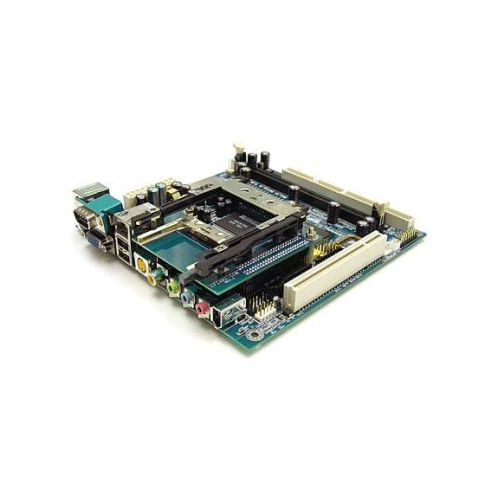

VIA EPIA MII 10000 Compact Flash and Cardbus PCMCIA Slots

Processor

- VIA Eden ESP 1Ghz processor
Chipset

- VIA CLE266 North Bridge
- VIA VT8235 South Bridge
System Memory

- 1 DDR266 DIMM socket
- Up to 1GB memory size
VGA - Integrated VIA Unichrome 2D/3D graphics with MPEG-2 Accelerator, motion compensation and duo-view support
Onboard CardBus / CompactFlash - CardBus Type I & Type II
- Ricoh R5C476 II / R5C485 CardBus Corntroller
Back Panel I/O - 1 CardBus Type I and Type II slot
- 1 CompactFlash slot
- 1 RJ-45 LAN port
- 1 PS2 mouse port
- 1 PS2 keyboard port
- 1 Serial port
- 2 USB 2.0 ports
- 1 VGA port
- 1 RCA port (SPDIF or TV-Out)
- 1 S-Video port
- 1 1394 port
- 3 Audio jacks: line-out, line-in and mic-in ;can be switched to 6 channel output
Onboard I/O Connectors - 1 USB connector for 2 additional USB 2.0 ports
- Front-panel audio connectors (mic-in and line-out)
- CD Audio-in connector
- 1 Buzzer
- FIR connector
- CIR connector (Switchable for KB/MS)
- Wake-on-LAN
- 1 LPT port header
- CPU/Sys FAN/Fan 3
- 1 Connector for LVDS module (Optional)
- 1 Serial port connector for second COM port
Expansion Slots

- 1 PCI
Onboard IDE

- 2 X UltraDMA 133/100/66 Connector
Onboard Floppy

- 1 x FDD Connector
Onboard LAN

- VIA Networking Tahoe\u2122 VT6103 Fast Ethernet 10/100 PHY-ceiver
Onboard Audio

- VIA VIA Vinyl Six-TRAC Audio AC' 97 codec
Onboard IEEE 1394 - VIA VT6307S IEEE 1394 (Optional)
Onboard TV-Out - VIA VT1622A TV Out
BIOS

- Award BIOS
- 2/4Mbit flash memory
System Monitoring & Management

- CPU voltage monitoring
- Wake-on-LAN
- Keyboard Power-on
-Timer Power-on
-System power management
- AC power failure recovery
Form Factor

- Mini-ITX (6 layer)
- 17 cm x 17 cm

$185.00
