533MHz fanless Mini-ITX PC - ON SALE -

Now on sale, only $200!

This great little computer is a very compact fanless unit with a 533MHz fanless Mini-ITX mother board inside. The computer is very light, and compact, yet there is a mounting bracket for a 2.5 inch (laptop style) hard drive and PCI card inside the case.

Uses for this computer include use as a compact and silent server (music, media, network, etc.), data storage, thin client, or desktop running Damn Small Linux.

The unit is sold as a barebones computer, meaning you buy the drive and the ram size you want. Ram size taps out at 1 GB. Besides using a laptop size hard drive you also have the option of using a bootable USB pen, a flash DOM or a bootable IDE CF disk -- the cfdisk2d IDE adapter is compatible.

We are now offering a compatible 1 Gig IDE flash disk on module with DSL preinstalled.

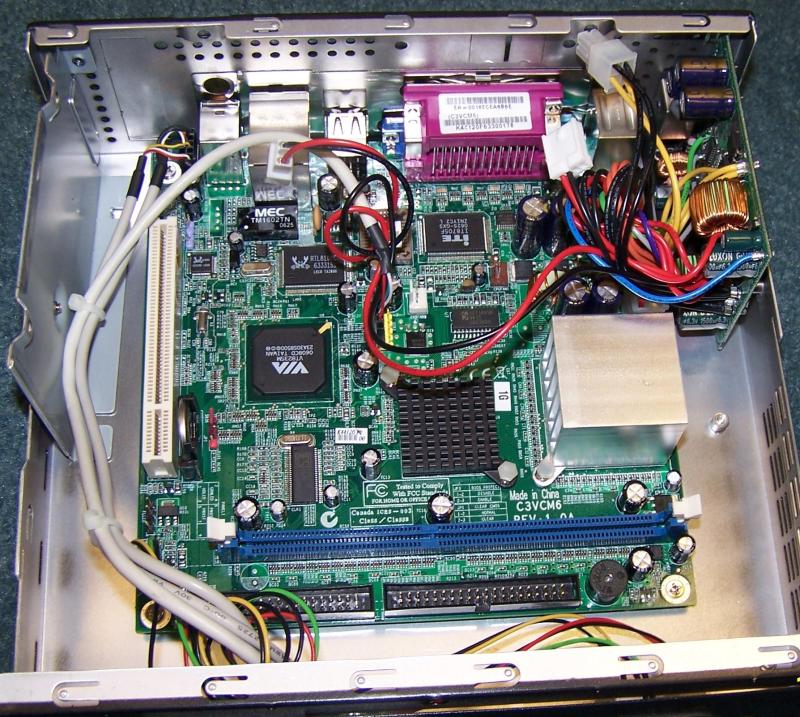

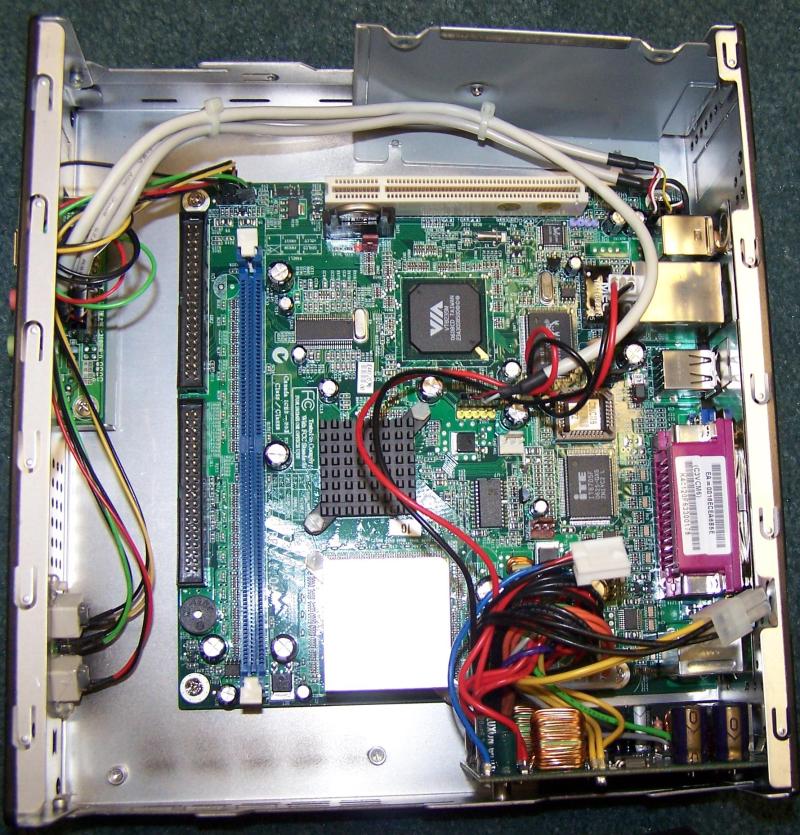

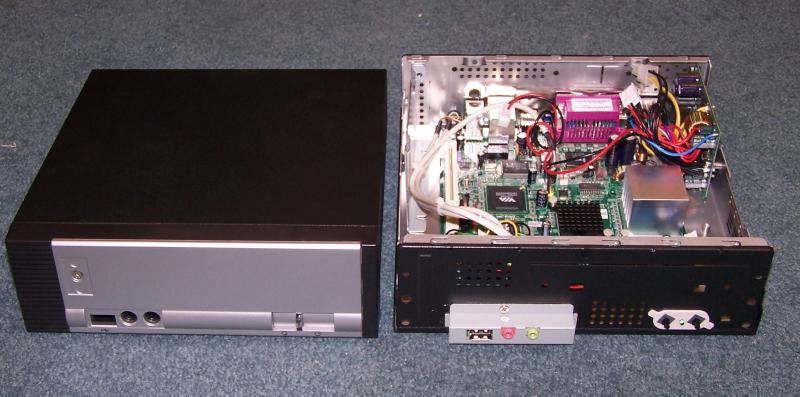

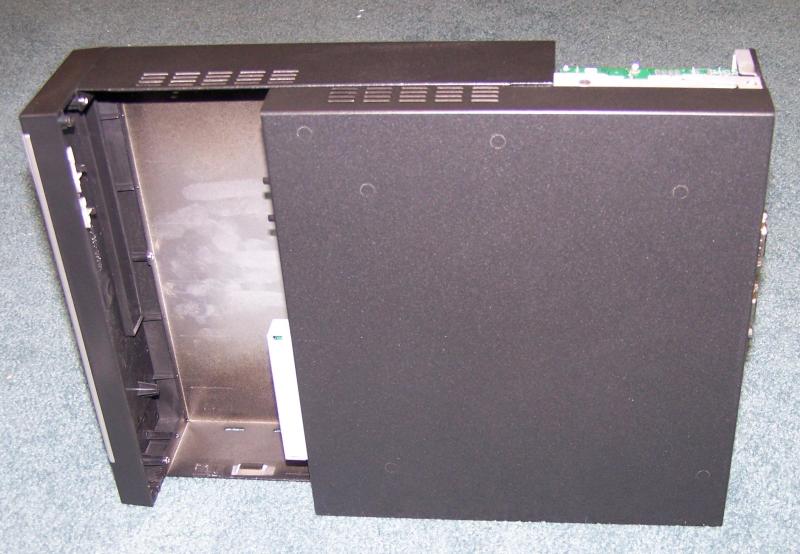

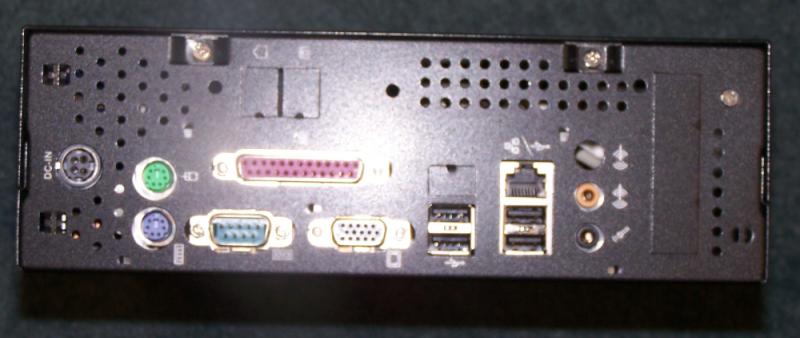

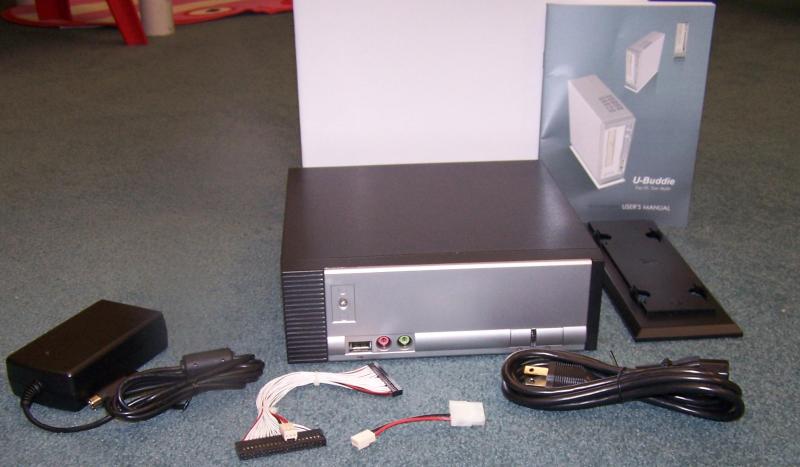

Here are some images of the unit:
Here are the specs:
Model Name Mars System
Processor VIA 533MHz fanless
Core Chipset VIA CLE266 (NB) & VT8235 (SB)
Integrated 2D/3D Video Accelerator (2 to 64MB shared memory)
VGA Integrated in VIA CLE266(NB)
support CRT resolutions up to 1920x1440
Panel resolutions up to 1600*1200
System Memory One 184-pin DIMM socket for DDR, supporting up to 1GB
Onboard LAN VIA VT6103
10/100 Mbps Fast Ethernet
Onboard Audio CMI9739---AC'97 Codec
Rear Panel I/O 2 X PS/2,
4 X USB2.0,
1 X Parallel connector,
1 X Serial connector,
1 X VGA connector,
1 X Audio connectors(Mic,Audio-in, and Audio-out),
1 X 10/100 Mbps Fast Ethernet.
Front Panel I/O 1 X USB2.0,
1 X Audio connectors(Audio-in, and Audio-out),
Security BIOS password
OS support Linux (Damn Small Linux),
Microsoft CE,
Microsoft XP embedded
Form Factor with stand
-232 x 75 x 244 mm
without stand
-232 x 75 x 230 mm
Regulatory Compliance EMI :CE, FCC
Safety : cUL, TUV
$200
